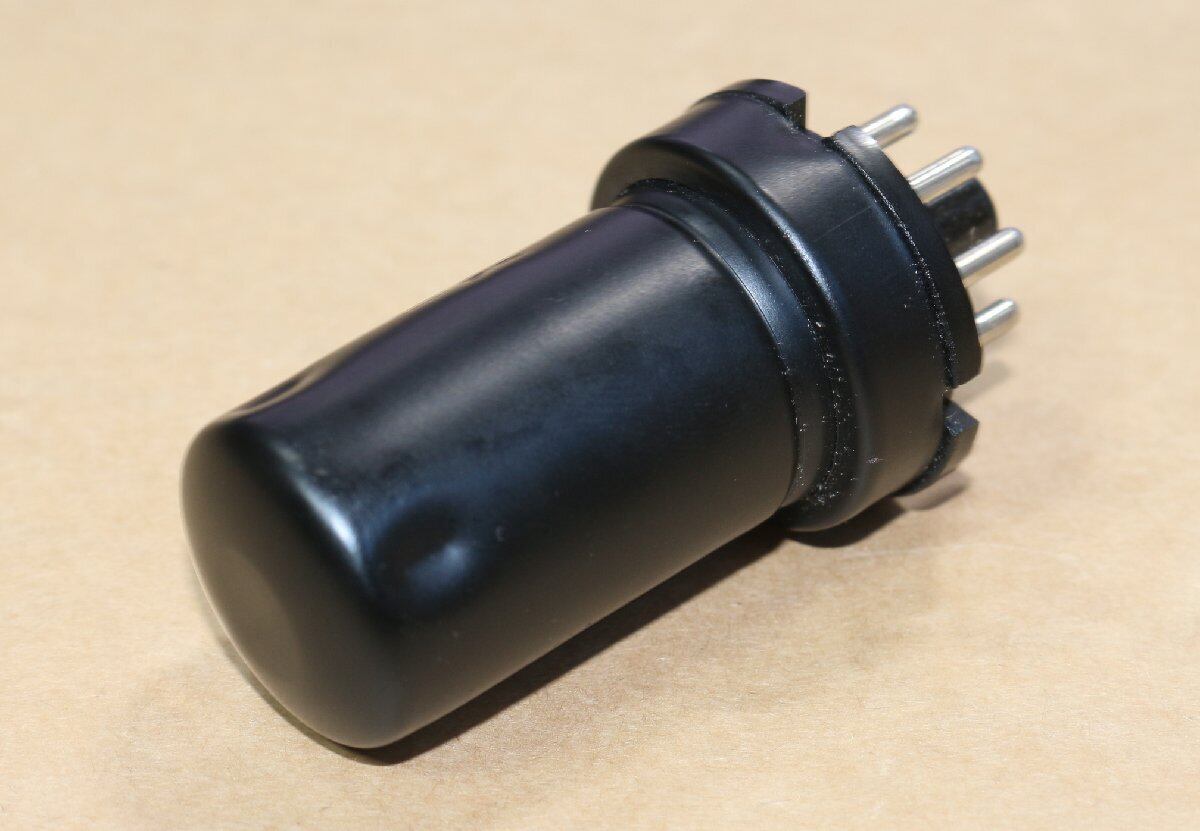

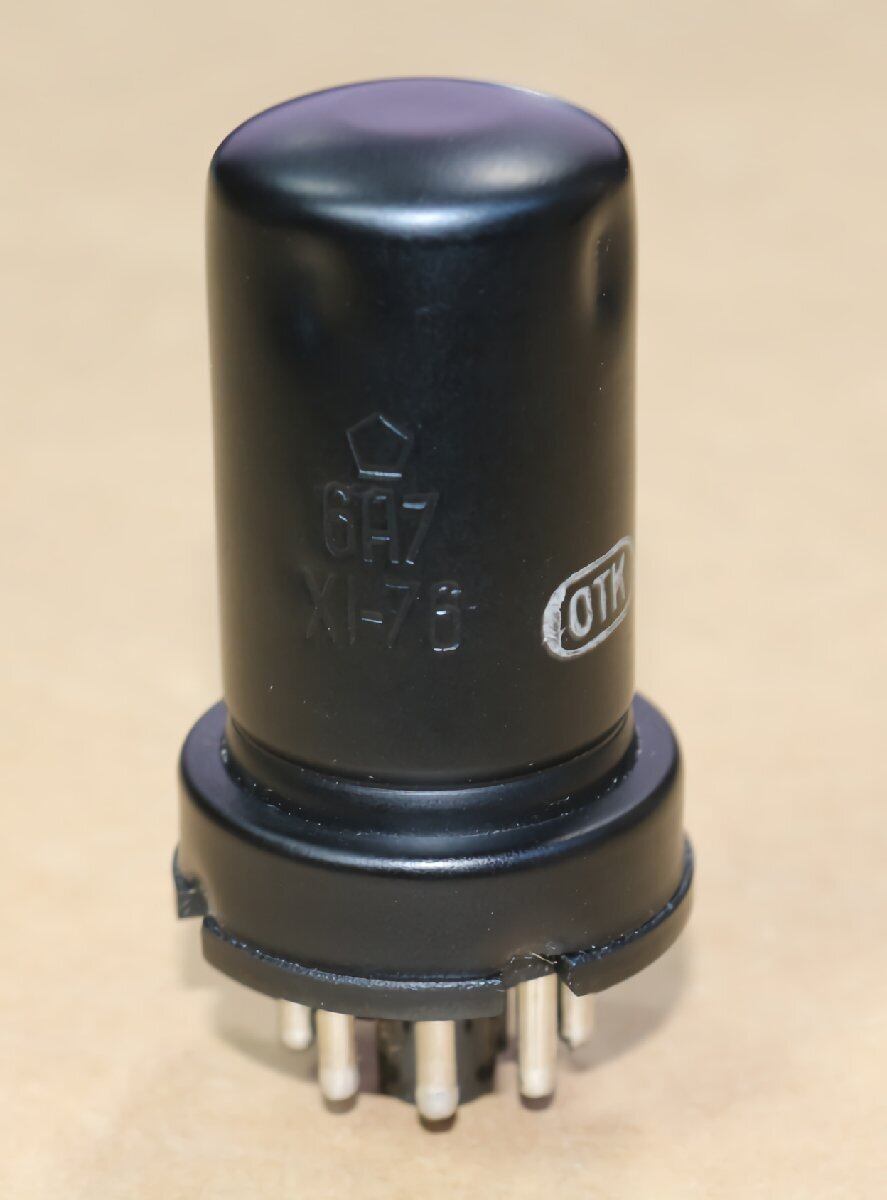

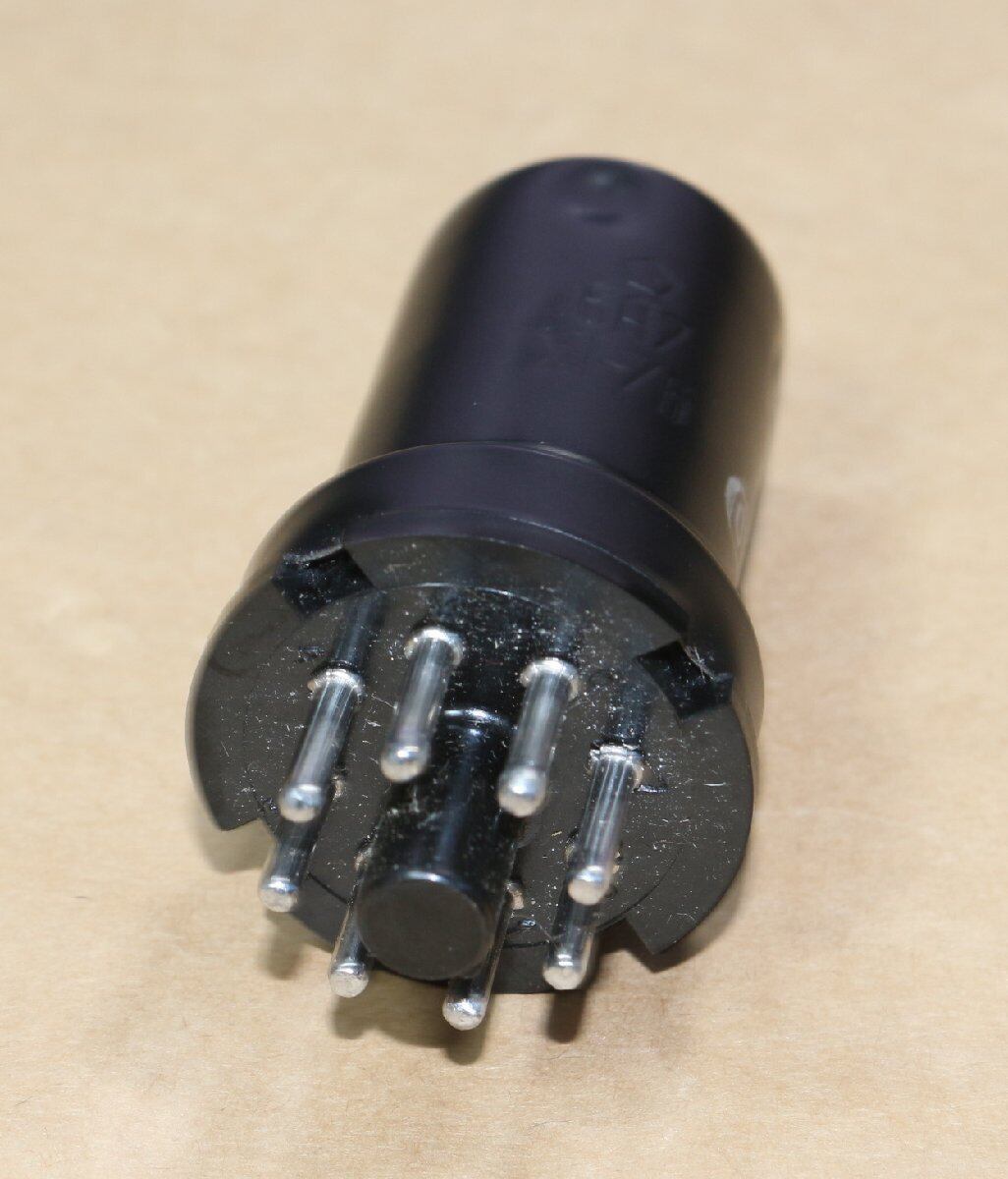

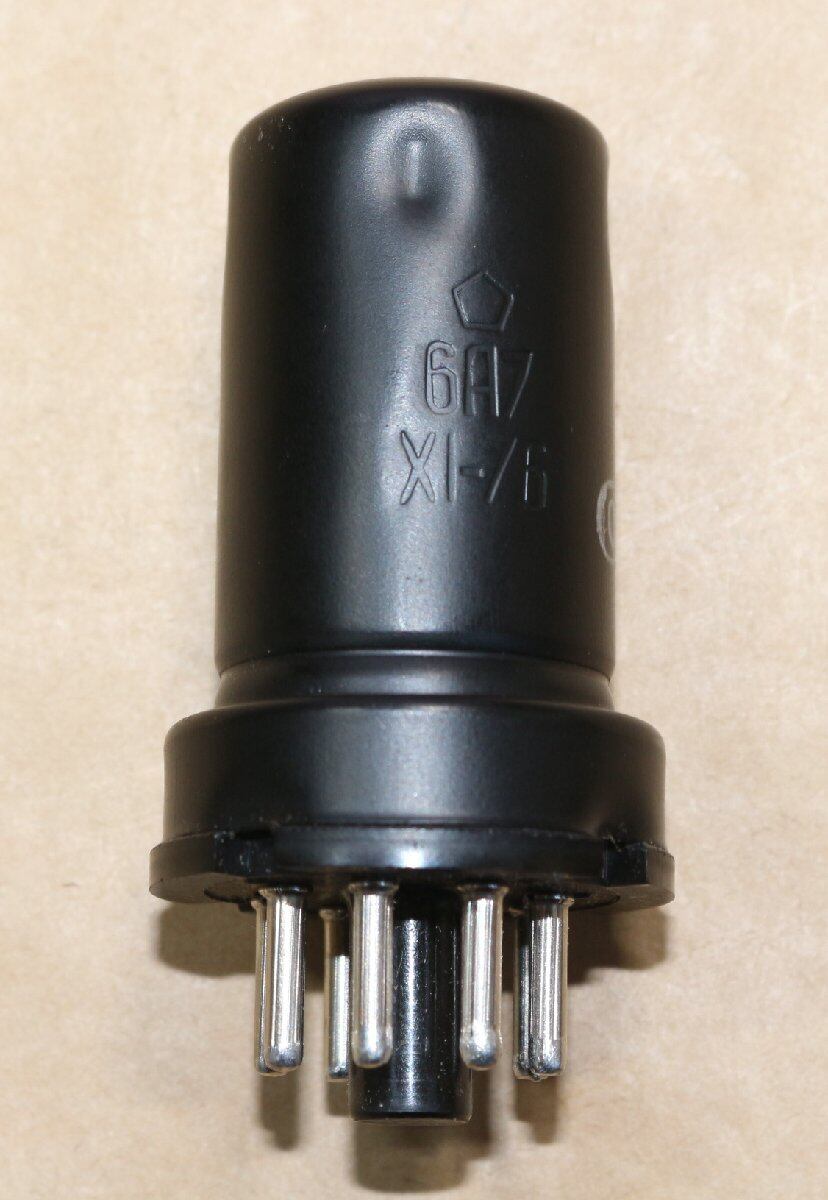

ロシア軍球 ビンテージ 6A7 メタル管 6SA7 6SB7 5961系 1本です。
画像の物と同等品1本になります。
70年代製造のビンテージ管です。

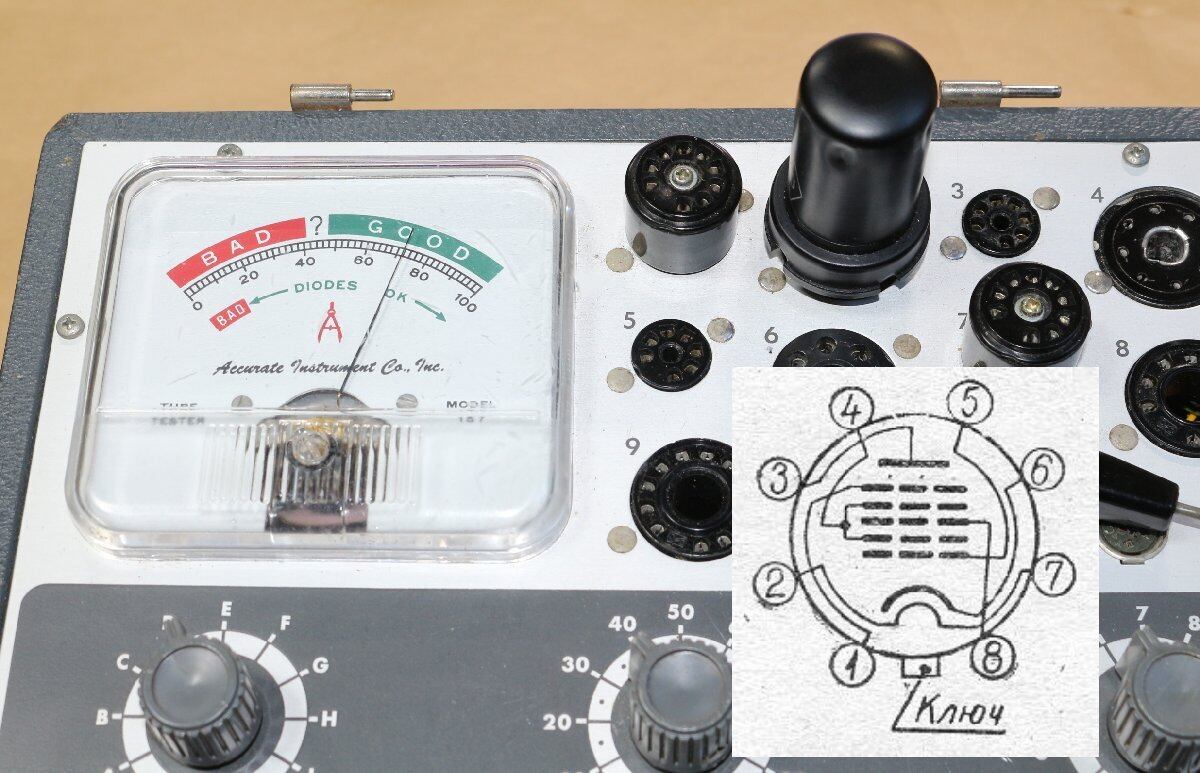

検査済み動作保証品1本になります。

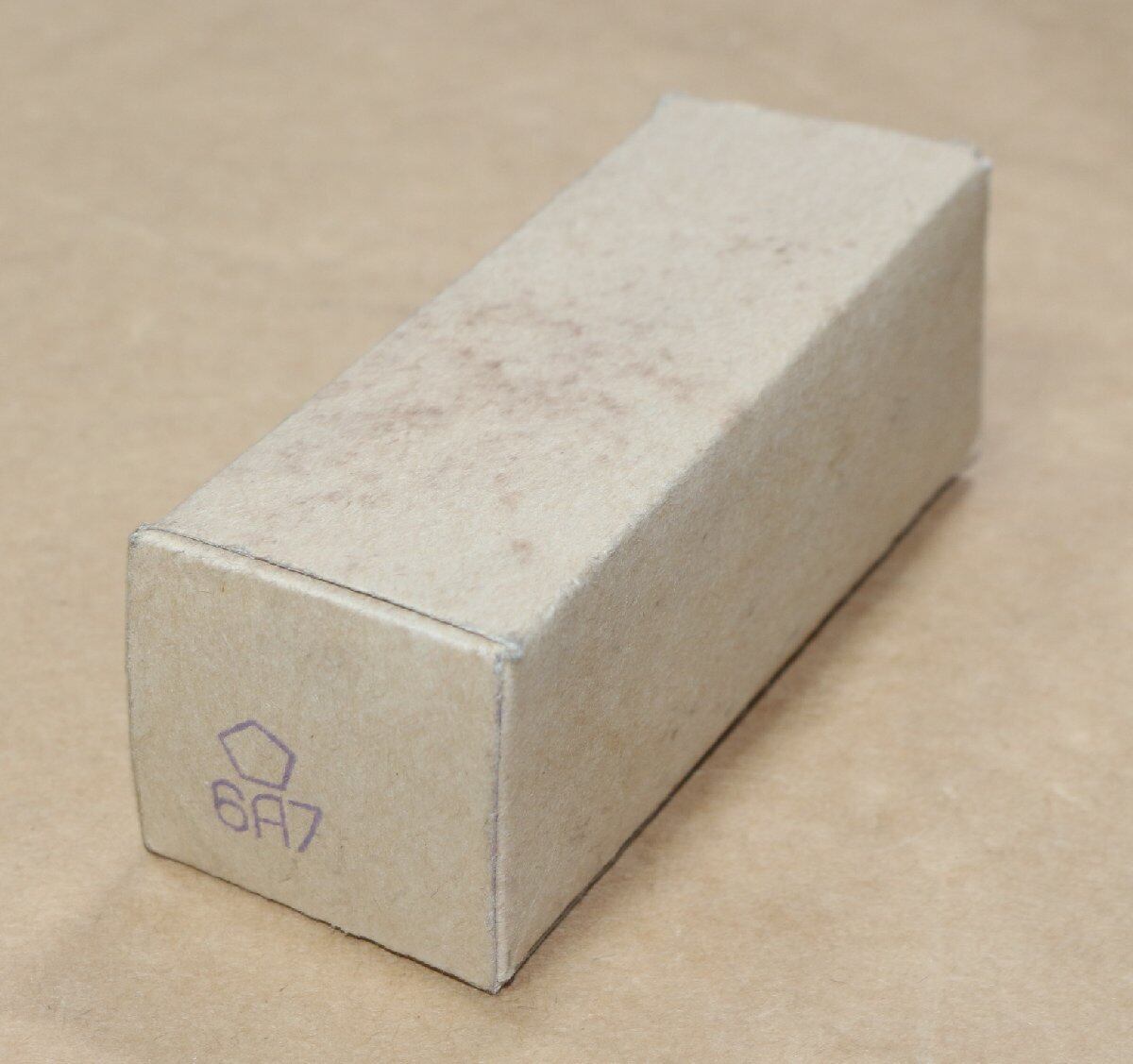

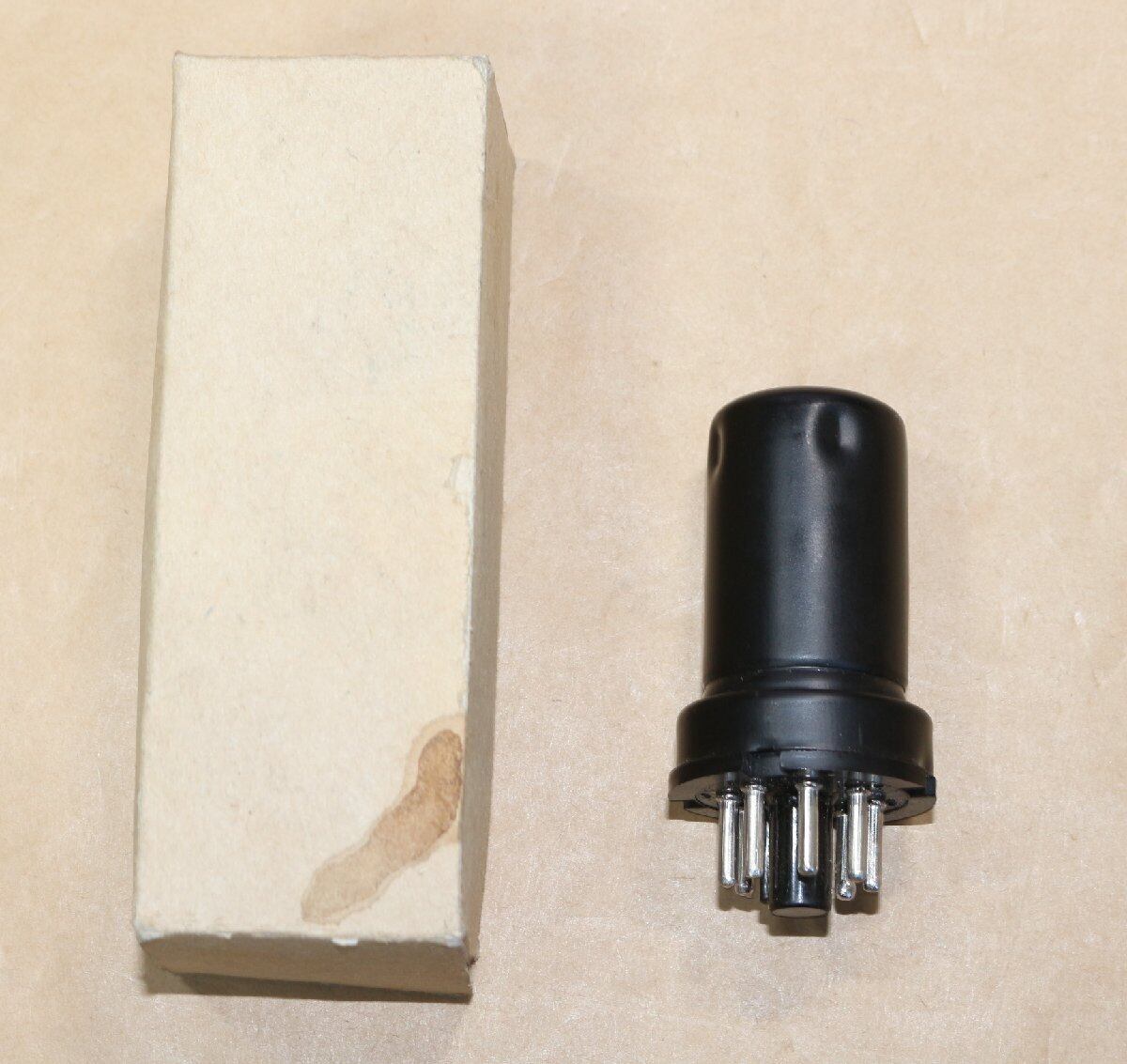

箱はボロです、緩衝用と割り切ってください。
新品未使用ですが傷汚れ錆有ります。
ネットで交換されてるデーター抜粋です。
ごちゃごちゃしてますが6SA7として受信機等で実際に使ってます。
Filament voltage 6.3 ±0.6 V
Filament current 600 ±50 mA
Nominal anode voltage (constant) 250 V
Anode voltage limit (constant) 300 V
Anode current of each triode 7.5 ±1.5 mA
The cathode current of each triode is limited to 25 mA
Grid voltage at anode current 10 μA -20 V
Reverse grid current 0.5 μA
Maximum voltage between cathode and heater (constant) 250 V
Power dissipation by each anode, maximum 2.2 W
Slope characteristic of each triode 4.45 ±0.65 mA/V
The voltage between the anodes is no more than 2.5 V
Gain of each triode 35 ±7
Resistance in each cathode circuit for automatic biasing is 600 ohms
The maximum resistance in the grid circuit is 1 MOhm
Input capacitance of each triode 3.1 ±1.1 pF
Output capacitance of the first triode 1.75 ±0.35 pF
Output capacitance of the second triode 1.95 ±0.35 pF
The throughput capacitance of each triode is no more than 2.2 pF
Capacitance between anodes no more than 0.2 pF
Miniature glass decoration
Durability of at least 500 hours.
Weight no more than 15 g
注意事項
豊かな経験をお持ちの方にオススメする商品です。
ノークレームノーリターンをお約束できる
余裕と遊び心がある方向けアイテムです。
弊社は本品を使用することによって起こりうる
被害に関して一切保障はいたしません。
